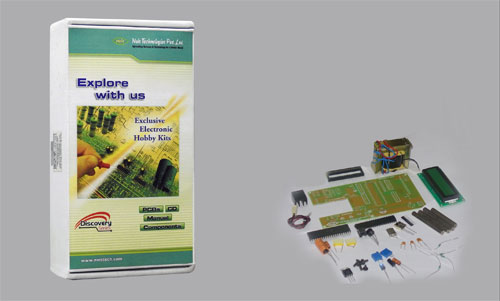

    Advanced Level IR Counter with LCD

    Nvis 36D

    Product Description

    In this circuit, microcontroller AT89C52 counts and shows on an LCD the number of interruption made between IR transmitter and receiver. The IR transmitter (IR LED) generates 38 KHz frequency from 555 timer . At receiver this frequency is sensed by IR receiver IC TSOP 1738. The interruptions generate pulses which are counted by the microcontroller and then display the counts (number of interruption) on LCD.
    Product Features

    • Visualization of output on an LCD.
    • Simple and easy to perform.
    • Descriptive operating manual with procedure.
    • Circuit diagram with PCB Layout for better understanding.
