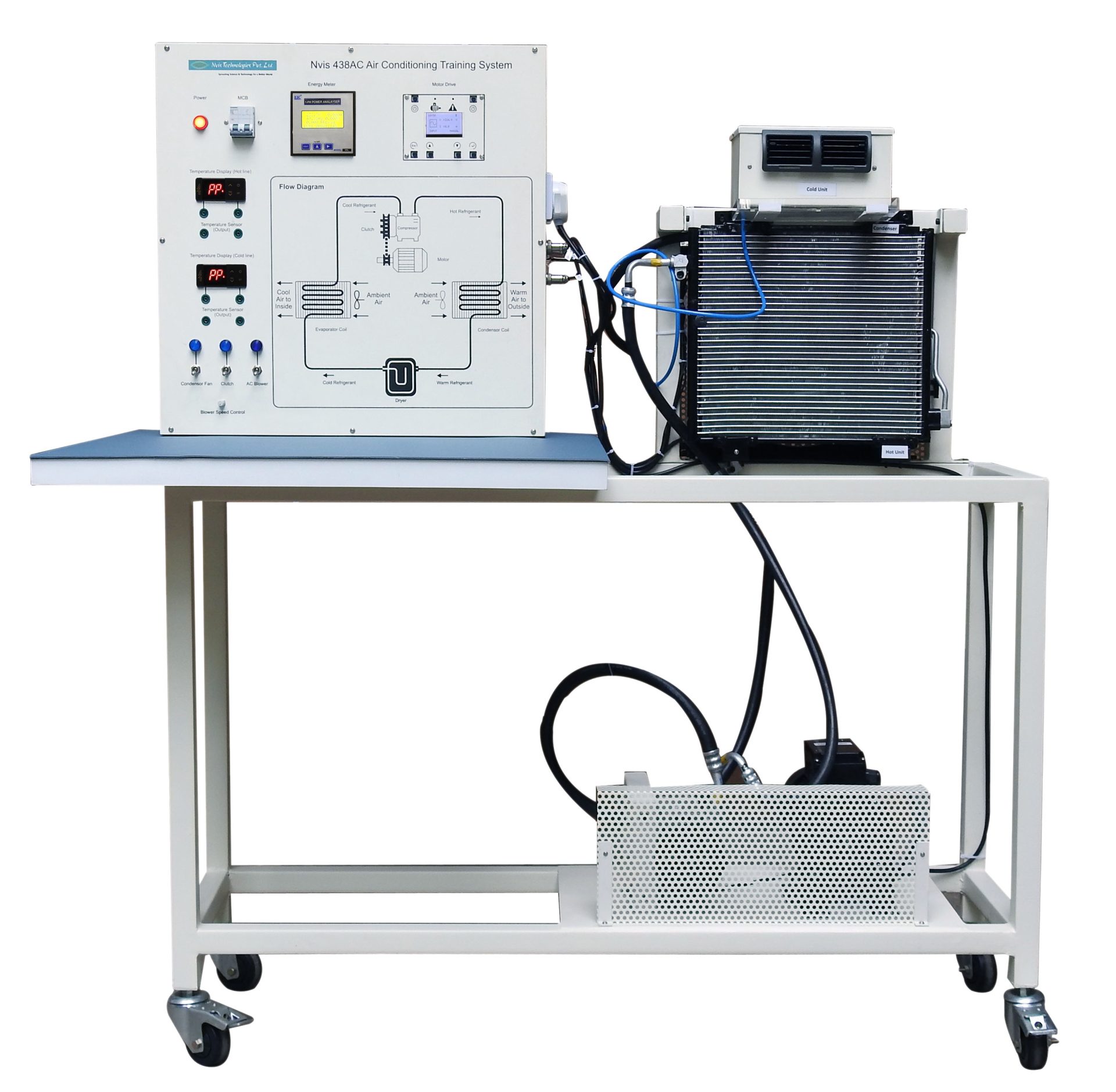

    Automotive Air-Conditioning Training Platform

    Nvis 438AC

    Product Description

    Nvis 438AC Automotive Air-conditioning Training Platform is an adaptable training solution that has extensively been used for Electric Vehicle and Refrigeration & Air-conditioning Laboratories. This training Platform is designed to provide a hands-on learning experience for students to understand the operation, maintenance, and troubleshooting of automotive air-conditioning systems in vehicles. It typically includes components such as compressors, condensers, evaporators, and expansion valves, allowing students to observe how these parts work together to cool the interior of a vehicle.


    • Nvis 438AC includes all major components required for an automotive air conditioning system, allowing students to study and understand their functions and interactions.
    • Temperature sensors for the evaporator and condenser provide real-time temperature readings, enabling students to monitor and analyze the cooling process.
    • Students can adjust the fan speeds for condenser to simulate typical performance problems and study their effects on system operation.
    • The platform features a built-in speed measurement system for the motor, allowing students to analyze motor performance and its impact on system operation.
    • Experiments configurable through patch cord.
    • Caster wheel (with locking mechanism) at the legs of WorkBench for easy movement.
    • MCB provided with AC supply for safety.
    • An operational drive is included to demonstrate the functionality and operation of the system’s drive components.
    • Nvis 438AC is designed with diagrammatic representations to facilitate easy connections and understanding of component interactions.
    • This setup offers real-time operation and interactive features to engage students in hands- on learning and experimentation.
    • Open frame design of the platform allows easy access to all areas, making it convenient for students to observe and interact with the components.
    • This platform features a visible compressor, electromagnetic compressor clutch, condenser, evaporator, dryer and expansion valve allowing students to observe their operation modes and study their functions in the system.
