    Experimentation with RLC Resonance

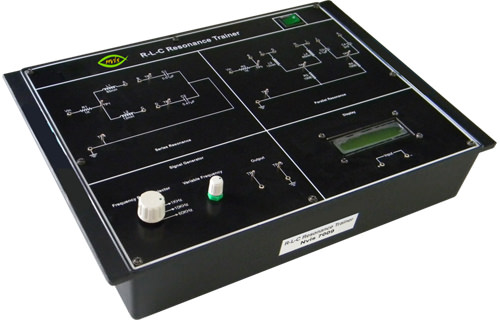

    Nvis 7009

    Product Description

    Nvis 7009 RLC Experimentation with RLC Resonance is very exclusive training system provides complete learning content for both series and parallel resonance. Resonance is an interesting phenomenon in electrical circuits in which inductive and capacitive elements behave to make a zero impedance circuit. This explanation is given with the help of passive circuits on the trainer . Multiple combination of components has been provided so that students can calculate resonance frequencies for these different combinations. Concept of Resonance frequency is explained very clearly which can be easily elaborated either on Oscilloscope or by on board display.

    Product Features

    • LCD Voltmeter and Frequency Counter
    • Inbuilt Signal Generator
    • Low cost Board demonstrating both Series and Parallel Resonance on the same board
    • Experiments can be per formed with or without Oscilloscope Inbuilt Power Supply
    • Online product tutorial
    Scope of Learning
    • Study of Series R-L-C Resonance and to determine its Resonance Frequency
    • Study of Parallel R-L-C Resonance and to determine its Resonance Frequency.
