    Four Quadrant Drive Training System

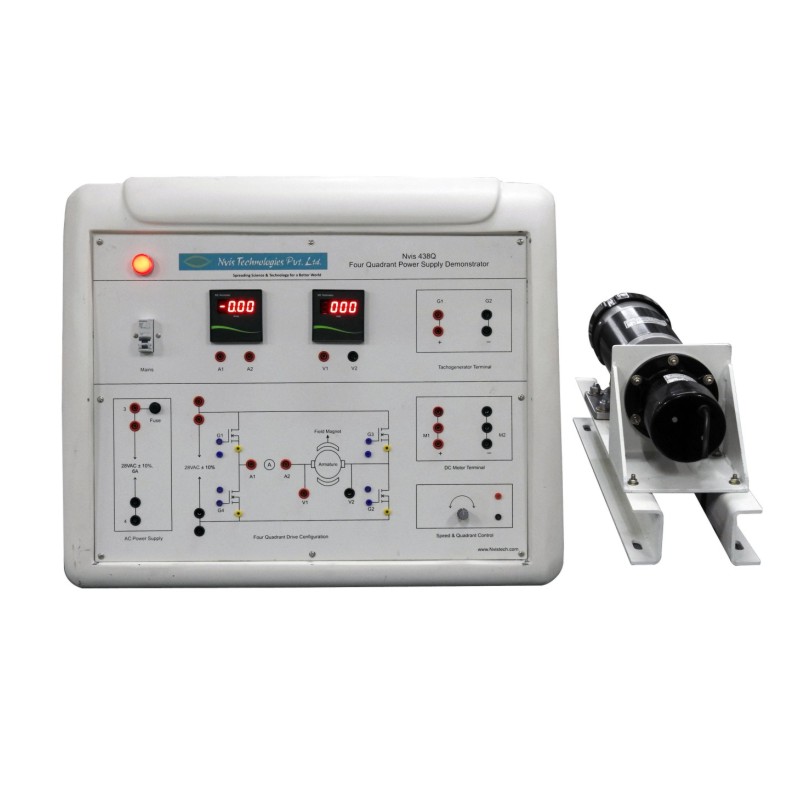

    Nvis 438Q

    Product Description

    Four-Quadrant Drive Training System is a highly versatile platform to understand the concept of regenerative braking in electric vehicles. Regenerative braking is a mechanism found in most hybrid and full-electric vehicles. It captures the kinetic energy from braking and converts it into the electrical power that charges the
    vehicle’s high voltage battery.

    Regenerative concept in electrical vehicle can be easily explored using four quadrant systems. A four quadrant drive is capable of controlling speed and torque in both positive and negative directions.

    Nvis 438Q offers a complete solution to understand the concept and functioning of four quadrant system by operating in all the four modes. It includes PDMC motor coupled with tachogenerator for feedback and further waveform observation on Oscilloscope in forward and reverse mode. Terminals are provided for analyzing the gate signals. The product is designed in such a way that each concept can be studied differently in proper sequence with all safety norms.

    Product Features
    • Stand alone operation.
    • Built in PowerScope for floating measurement on any Oscilloscope.
    • Control board consists of high grade FRP material to provide utmost safety to the users.
    • High quality digital meters.
    • Machine coupled with tachogenerator for feedback signal and waveform analysis at forward motoring and reverse motoring mode
    • Machine with Class ‘F’ insulation.
    • Terminals provided to observe the gate signals on Oscilloscope.
    • Standard BS terminals patch cords for safety.
    • Designed considering all safety international standards.
    • Diagrammatic representation for the ease of workin
