The Hall Effect Setup Nvis 6101 is a very useful laboratory system for the study of the Hall Effect in semiconductors. This Hall Effect setup is designed to provide practical understanding of the Hall Effect, semiconductor properties, magnetic fields, and charge carrier behavior. The Hall Effect is an important observation in material science and semiconductor studies.

If an electric current flows through a conductor in a magnetic field, the magnetic field exerts a transverse force on the moving charge carriers, which tends to push them to one side of the conductor, producing a measurable voltage between two sides of the conductor. This voltage is known as Hall Voltage. Through the Nvis Hall Effect experiment setup, we can determine carrier density, the mobility of charge carriers, Hall coefficient, Hall voltage, and other important semiconductor parameters.

The Hall Effect Setup can also be used to study the effect of temperature on a semiconductor and the relationship between magnetic field and Hall voltage. This makes the Nvis 6101 a suitable Hall Effect apparatus for practical laboratory experiments and semiconductor education.

Hall Effect Setup Consists of the Following:

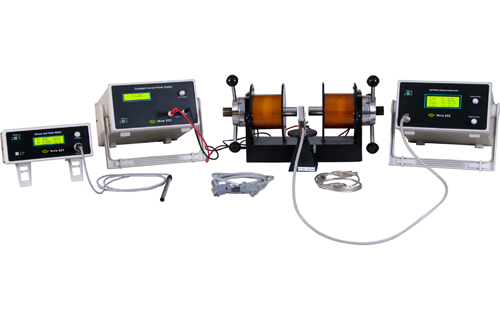

• Gauss and Tesla Meter Nvis 621 (InAs probe)
• Measurement Unit Nvis 622
• Constant current power supply Nvis 623
• Electromagnet
• Hall Probe with Oven

Nvis 6101, Hall Effect Apparatus is an ideal platform to enhance education, training, skills & development among our young minds. This Hall Effect setup helps students understand Hall voltage measurement, magnetic field measurement, carrier concentration, Hall coefficient, and charge carrier mobility through practical experimentation.

Product Features

• A complete set for the study of Hall Effect in semiconductor
• A Hall Effect probe is provided with p type germanium crystal with oven
• Measurement unit with LCD display and PC interface to measure Hall voltage and probe current
• Provided with InAs sensor for measuring magnetic field
• Constant current source provided with LCD display
• Gauss and Tesla meter for measuring magnetic field with LCD display and PC interface facility
• Provided with an Electromagnet

Scope of Learning

• Measure the magnetic field by Gauss and Tesla meter
• Find the poles of an electromagnet with the help of Hall probe and gauss meter
• Perform Hall voltage measurement
• Calculate the charge carrier concentration density of semiconductor crystal
• Calculate the Hall coefficient of Ge ‘p’ type crystal
• Calculate the mobility of charge carrier particles
• Study the Hall voltage as a function of current at constant magnetic field
• Study the dependence of Hall effect coefficient on temperature
• Study Hall voltage as a function of magnetic field at constant current

The Hall Effect experiment setup provides a practical way to understand the relationship between electric current, magnetic field, Hall voltage, and semiconductor charge carriers. It is suitable for laboratory training and experiments related to semiconductor physics and material science.

Why Choose Nvis 6101 Hall Effect Setup?

The Nvis 6101 Hall Effect Setup is designed to provide a complete and practical learning experience for studying the Hall Effect in semiconductors. This Hall Effect setup combines essential measurement instruments and accessories in one laboratory system, making it suitable for practical semiconductor experiments.

• Complete Hall Effect Experiment Setup: Includes the Hall probe, measurement unit, constant current power supply, electromagnet, and Gauss and Tesla meter for conducting a complete Hall Effect experiment setup.
• Practical Semiconductor Experiments: Helps students perform experiments related to Hall voltage, Hall coefficient, carrier concentration, and charge carrier mobility.
• Accurate Magnetic Field Measurement: The Gauss and Tesla meter with an InAs sensor allows convenient measurement of the magnetic field during the Hall Effect setup experiments.
• Temperature-Based Studies: The Hall probe with an oven enables students to study the effect of temperature on Hall Effect characteristics.
• LCD Display and PC Interface: Measurement units provide convenient readings through LCD displays and PC interface facilities.
• Easy Laboratory Learning: Provides a structured Hall Effect set up for hands-on training in semiconductor physics and material science.
• Suitable for Educational Laboratories: The Hall Effect experiment setup is ideal for colleges, universities, engineering institutes, and physics laboratories for practical Hall Effect studies.

Frequently Asked Questions

1. What is the Nvis 6101 Hall Effect Setup?

The Nvis 6101 Hall Effect Setup is a laboratory system designed for studying the Hall Effect in semiconductors. This Hall Effect setup helps students understand Hall voltage, magnetic field behavior, Hall coefficient, carrier concentration, and charge carrier mobility through practical experiments.

2. What can be studied using the Hall Effect experiment setup?

The Hall Effect experiment setup can be used to measure Hall voltage and study the relationship between Hall voltage and current at a constant magnetic field. Students can also study Hall voltage as a function of magnetic field, calculate the Hall coefficient, determine carrier concentration and mobility, and investigate the effect of temperature on the Hall Effect.

3. What components are included in the Hall Effect setup?

The Nvis 6101 Hall Effect setup includes a Gauss and Tesla Meter Nvis 621 with an InAs probe, Measurement Unit Nvis 622, Constant Current Power Supply Nvis 623, electromagnet, and Hall Probe with Oven. These components provide a complete Hall Effect experiment setup for practical semiconductor studies.

4. Which semiconductor is used in the Nvis 6101 Hall Effect setup?

The Nvis 6101 Hall Effect Setup uses a p-type germanium crystal with an oven in the Hall Effect probe. This allows the Hall Effect experiment setup to be used for studying Hall voltage, Hall coefficient, carrier concentration, and the effect of temperature on semiconductor characteristics.

5. Where can the Nvis 6101 Hall Effect setup be used?

The Nvis 6101 Hall Effect setup is suitable for physics, electronics, electrical engineering, and semiconductor laboratories. Colleges, universities, engineering institutes, and educational laboratories can use this Hall Effect experiment setup for hands-on learning and practical semiconductor experiments.

6. What measurements can be performed with the Hall Effect setup?

The Hall Effect setup can be used to measure magnetic field and Hall voltage and determine the Hall coefficient, carrier concentration, and mobility of charge carriers. It also supports studies of Hall voltage versus current, magnetic field, and temperature.

7. What is the purpose of the Hall probe in this Hall Effect experiment setup?

The Hall probe in the Hall Effect experiment setup is used to study the Hall Effect in the semiconductor crystal. It works with the magnetic field measurement system and allows practical investigation of Hall voltage and other semiconductor parameters.

8. Does the Nvis 6101 Hall Effect setup support temperature studies?

Yes. The Nvis 6101 Hall Effect setup includes a Hall probe with an oven, allowing students to study the dependence of the Hall Effect coefficient on temperature and understand how temperature affects semiconductor behavior.
