    Photovoltaic Stand Alone System

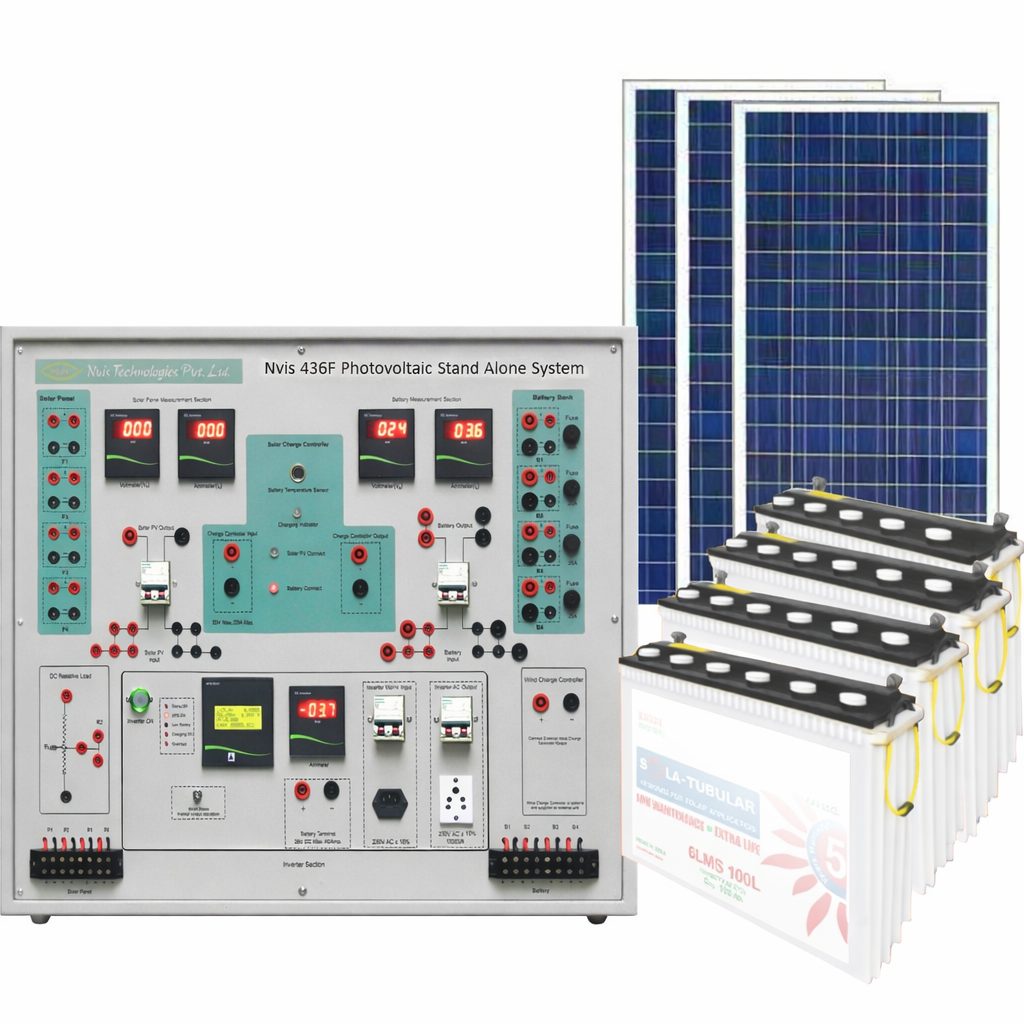

    Nvis 436F

    Product Description

    Technical Specifications:

    • This system consists of two parts, Panel Set – A and Panel Set – B.:
    • Panel set A for wiring and panel set B for PV array connection

    Panel Set A

    Approx. Dimensions: L 850mm X W 350mm X H 650mm
    Balance of System components pre-mounted Trunking and ducting to facilitate wiring and routing of cables-
    Minimum Components pre-mounted on board for off Grid PV system circuit:
    • DC array Isolator with MC4 connector terminated to receive external
    • Solar cable connection to PV Solar Array
    • Sets of MCBs for DC Array and Controller protection
    • Charge Controller with provision for battery charging, DC external loads and connection to inverter; Have
    display value on Voltage, current.
    • Battery Disconnect Switch
    • Battery 100 AH ,12V deep cycle Lead Acid battery
    • AC Inverter of 1KVA, input 12V/24V, output 230V, 50 Hz, type pure sine wave type
    • AC Isolator
    • Provision for earthling terminations
    • Control panel are provided with power flow diagrammatic representation
    Cable provided must be of appropriate colour codes and sizes meeting to approve IEC PV regulation
    requirement.

    Panel Set B

    PV Module and array requirement are listed below:
    Four PV Polycrystalline modules pre-mounted and connected with following requirement on each PV module
    PV Panel Total Capacity -1kW
    Each module to be connected with bypassed diode in junction box and which is accessible for inspection and
    testing. The positive and negative terminals are terminated in MC 4 connectors and properly labelled terminal
    ‘+ve’ or ‘-ve’ wires.
    Parallel MC4 connectors with solar wire and MC 4 straight connector assembly to be of sufficient length and
    number to be able to connect the 4 modules in series or parallel configuration for training.
    The modules are to be mounted on inclinable plane which is lockable at different angles to horizontal position
    respectively.
