Product Description

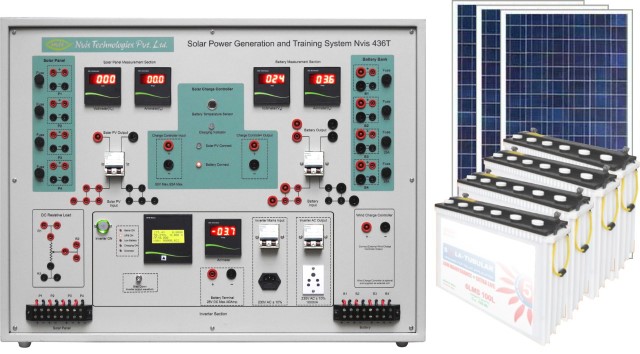

This system consists of two parts, Panel Set – A and Panel Set – B and Panel set A for wiring and panel set B for PV array connection

Product Features

• Approx. Dimensions: 800mm L x350mm W x 600 mm H – Indicative only
• Swivel caster wheels (4 no’s) with 2 locking mechanism
• Balance of System components pre-mounted Trunking and ducting to facilitate wiring and routing of cablesMinimum Components pre-mounted on board for off Grid PV system circuit:
• DC array Isolator with MC4 connector terminated to receive external
• Solar cable connection to PV Solar Array
• Sets of MCBs for DC Array and Controller protection
• Charge Controller with provision for battery charging, DC external loads and connection to inverter; Have display value on Voltage, current.
• Battery Disconnect Switch
• Battery 100 AH ,12V deep cycle Lead Acid battery
• AC Inverter of 1KVA, input 12V to 24V, output 230V, 50 Hz, type pure sine wave type
• AC Isolator
• AC consumer unit complete with DP MCB isolator, RCB, SPD, MCB of suitable rating
• Provision for earthling terminations for both DC and AC connection
• Control panel are provided with power flow diagrammatic representation
• All components’ rating selected must comply to approved IEC standard and meeting local regulation on over current and earth protection requirements.
• Cable provided must be of appropriate colour codes and sizes meeting to approve IEC PV regulation requirement.
