PMSM Motor Training System

Product Description

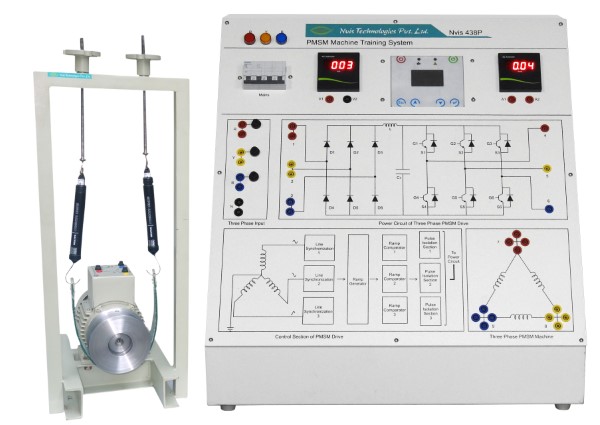

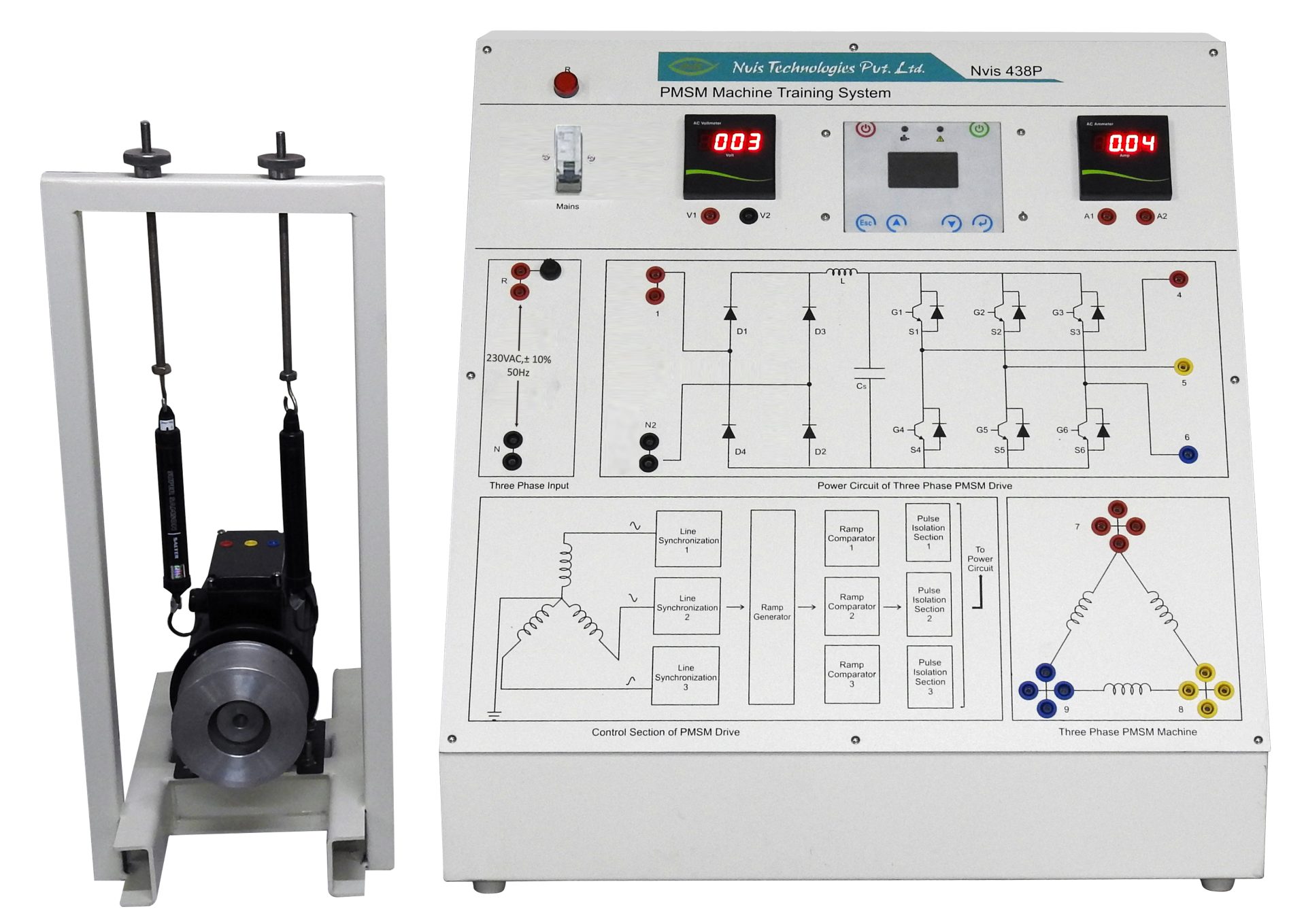

Nvis 438P PMSM Motor Training System is an adaptable training solution that has extensively been used for Electrical and Electric Vehicle Laboratories. This advanced PMSM motor training system for EV applications helps students and professionals understand the real-world working of a PMSM motor for EV systems.

A Permanent Magnet Synchronous Motor (PMSM) has a higher power density than any other available motors. Due to these advantages, PMSM motors for EV (electric vehicles) are widely used in modern electric mobility solutions.

Nvis 438P provides a comprehensive learning experience for working of PMSM motor for EV and industrial applications through experiments such as running and reversing, torque-speed characteristics, load characteristics, speed controlling using V/F technique, etc.

Product Features

• Built-in speed measurement
• Built-in operational Drive
• Brake-Drum Pulley with heat suppression facility
• Machine with Mechanical Loading Arrangement
• Diagrammatic representation for the ease of connections
• Designed with all the safety standards

Why Choose Nvis PMSM Motor Training System?

The Nvis 438P PMSM Motor Training System is designed to provide a practical and industry-relevant learning experience for understanding PMSM motor for EV applications. Backed by Nvis expertise in educational lab equipment, this system combines real-time experimentation with safe and user-friendly operation, making it ideal for educational and research environments.

• EV-Focused Learning: Specifically aligned with modern PMSM motor for EV concepts and applications
• Hands-on Training: Enables practical understanding of motor characteristics, control, and performance
• Comprehensive Experiments: Covers torque-speed, load characteristics, and V/F speed control
• Trusted Nvis Quality: Developed by Nvis with a focus on durability, accuracy, and long-term usability
• Built-in Safety & Reliability: Designed with safety standards for secure lab usage
• Easy Operation: Diagrammatic setup ensures quick and error-free connections

FAQs – PMSM Motor Training System

Q1. What is a PMSM motor for EV?

A PMSM (Permanent Magnet Synchronous Motor) is one of the most widely used motor types in electric vehicles (EVs). It is highly efficient, compact, and offers high power density, precise speed control, and lower energy consumption compared to traditional motors.

Q2. What is a PMSM motor training system?

A PMSM motor training system is an educational system that aims at enabling students and professionals to learn about the working, control and nature of PMSM motors. It allows practical experiments concerning EV applications, speed control, and motor performance analysis.

Q3. What experiments can be performed using the Nvis PMSM Motor Training System?

Experiments that can be performed using the Nvis PMSM Motor Training System include running and reversing of motor, torque-speed characteristics, load testing, and speed control using VVVF techniques. These experiments help in understanding real-time PMSM motor behavior in EV systems.

Q4. Why are PMSM motors preferred in electric vehicles?

The use of PMSM motors in electric vehicles is due to their high efficiency, low maintenance, and good power-to-weight ratio. They offer a smooth operation, enhanced torque control and increased reliability, which is why they are suitable in the modern EV use.

Q5. Who can use the Nvis PMSM Motor Training System?

Nvis PMSM Motor Training System can be used in engineering colleges, technical institutes, and EV research laboratories. It is perfect to students, teachers, and professionals who desire to have practical knowledge of PMSM motor operation and EV-related technologies.
