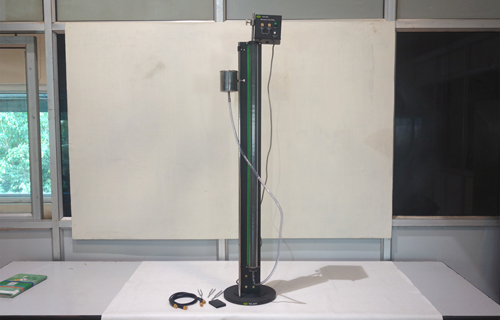

    Resonance Tube Setup

    Nvis 6053

    Product Description

    Nvis 6053 Resonance Tube Setup works on the principle of resonance and is useful apparatus for determining the speed of sound. It consists of the closed organ pipe attached to the water reservoir. When the sound waves are sent in closed organ pipe, standing wave pattern consisting of nodes and antinodes is formed. By varying the position of water reservoir, the length of air column in closed organ pipe changes. The length at which antinodes are formed is being noted.

    Nvis 6053 facilitates measurement of speed of sound by both conventional and new (electrical) methods. In first method, the sound wave of fixed frequency is generated with the help of tuning fork and the position of antinode is found by hearing the intensity of sound. The second method uses an audio transceiver for generating sound wave of fixed frequency and the condition of resonance is detected on Oscilloscope.

    Nvis 6053, Resonance Tube Setup is an ideal platform to enhance education, training, skills & development amongs our young minds.

    Product Features

    • Provided with Audio Transceiver for accurate measurement
    • Tuning fork of three different frequencies
    • Long tube helps in obtaining more resonance points
    • Easy to operate
    • Online product tutorial
    Scope of Learning
    • Study of determine speed of sound with the help of tuning fork
    • Study of determine speed of sound with the help of audio transceiver
