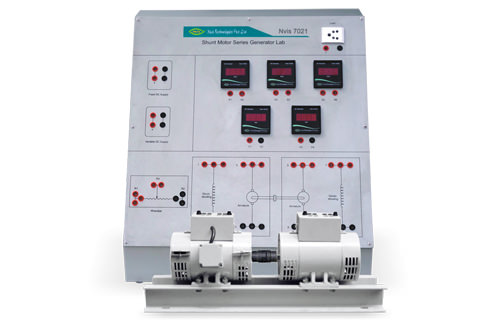

    Shunt Motor Series Generator Lab

    Nvis 7021

    Product Description

    Nvis 7021 Shunt Motor Series Generator Lab is an elite training system for the Electrical laboratories. This product help students to understand basic operations of DC Series Generator. It can aptly be used for performing various experiments like Working of Generator, Analysis of Magnetic Characteristic and also efficiency at any desired load. Separate terminals of armature and field windings are provided on top of the machine. Starter and rheostat terminals are provided on the panel so that these can be connected externally to the circuit. The product thus provides complete understanding of experiments with Shunt Motor and Series Generator.

    Product Features

    • Electrical Loading Arrangement
    • Flexible Shaft Coupling Arrangement
    • Provided with Digital Techometer
    • Machine with Class “B” Insulation
    • Heavy Duty Base/Channel
    • Terminals provided to use the optional externally
    • Designed by considering all the safety standards
    • Diagrammatic representation for the ease of connections
    • Exclusive and Compact Design
    • Online Product Tutorial
    Scope of Learning
    • Study and verify the No-Load Characteristic of DC Series Generator
    • Study and verify the Load Characteristic of DC Series Generator
