Single and Three Phase Electrical Measurement Training System

Product Description

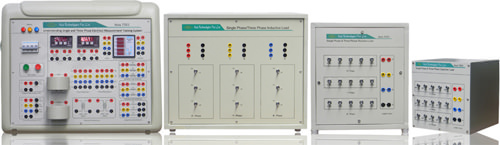

Nvis 7053 Single and Three Phase Electrical Measurement Training System is a versatile solution for electrical
laboratories. It enables the study and measurement of basic electrical parameters such as single and three phase
voltages, single and three phase currents, frequency, active power, reactive power, apparent power, power factor
and energy.

Nvis 7053 provides Resistive (R), Inductive (L) and Capacitive (C) loads to understand their effect in power systems. Users can observe and learn about parameters such as active power, reactive power, apparent power, and power factor at different combinations of resistive, inductive, and capacitive loads. It provides a platform to easily understand the concepts behind current transformers (CT) & potential transformers (PT) and their applications in power systems. The varied scope of learning makes the subject easy to grasp.

Product Features

• Built in Direct on Line (DOL) starter
• Equipped with supply indication lamps
• Built in CT & PT to understand working and applications
• Equipped with single and three phase multifunction meters
• Provides with suitable values of Resistive, Inductive and Capacitive Load.
• Stand alone operation
• BS10 safety terminals provided
• Diagrammatic representation for easy connections
