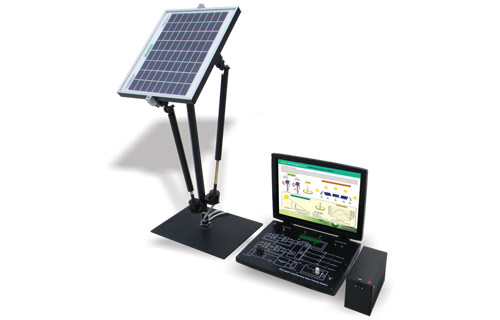

    Experimenting with Solar Tracking System

    Nvis 6019

    Product Description

    Nvis 6019 Understanding Solar Tracking System is a versatile training system for study and demonstration of Solar tracking. Solar tracker is a device which tracks the motion of the Sun, thus ensuring that the maximum amount of Sunlight strikes the panels throughout the day.

    Product Features

    • Complete training system to study the fundamentals of Solar Tracking
    • Microcontroller based Tracking System
    • Single-axis and Dual-axis Tracking
    • Manual, Time and Auto Modes of operation in Single-axis Solar Tracking
    • Manual mode of operation in Dual-axis Solar Tracking
    • Master Reset Switch for recovery of System
    • Emergency Motor Stop Switches
    • Tilt Sensors for sensing angle of panel with respect to horizontal plane
    • Facility for charging battery using Solar energy as well as DC supply
    Technical Specification
    Supply Voltage12V DC
    Solar Panel
    Maximum Output Power (Pm)18W
    Open Circuit Voltage (Voc)21V DC
    Short Circuit Current (Isc)1.07A
    Maximum Output Voltage (Vmp)17V
    Maximum Current (Im)1.06A
    DC Motor12V
    Rechargeable Battery12V, 7Ah
    Display20 x 4 LCD
    Light SensorPhototransistor
    Acceleration/Vibration/Tilt Sensor � 3 Axis+5V @ 1ma current
    Fuse1Amp (3 Nos.)
    DC Adaptor12V @ 1Amp
    Dimension (mm)W 350 x D 280 x H 55
