Sumpner`s Test of Two Single Phase Transformer

Product Description

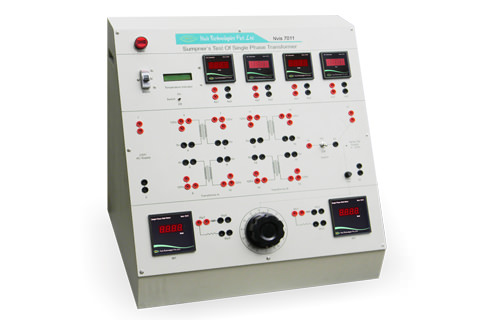

Nvis 7011 Sumpner’s Test of Single Phase Transformer is a very exclusive and important product designed for students of Electrical Engineering to explain the basic concepts of Sumpner’s test. With this trainer, students can learn about the significance of conduction of the heat run test with two single phase transformers and correspondingly can determine the efficiency and voltage regulation. Additionally one can also learn the phenomenon of polarity.

This setup is specially designed to demonstrate the Sumpner Test of Transformer and helps students understand transformer performance under practical operating conditions. The trainer provides a comprehensive understanding of Sumpner Test in Transformer applications, including efficiency determination and voltage regulation assessment. It is also ideal for performing Sumpner’s Test on Single Phase Transformer in educational laboratories and training institutes.

The product helps the students to get fully acquainted with the basic concepts and functioning of the tests conducted on single phase transformers. The product is represented in such an easy way that each test can be studied in proper sequence. The trainer serves as an effective platform for learning the Sumpner Test method and its significance in transformer testing and analysis.

Product Features

• Two Identical Single Phase Transformer
• Inbuilt Single Phase Variac
• Microcontroller based LCD to display variation in temperature
• Equipped with supply indication lamps
• Designed by considering all the safety standards
• Diagrammatic representation for the ease of connections
• Exclusive and Compact Design
• Online Product Tutorial

Scope of Learning

• Understanding the principle and objectives of the Sumpner Test for transformer performance evaluation.
• Performing Sumpner Test of Transformer to determine efficiency under different load conditions.
• Studying the procedure and significance of Sumpner’s Test on Single Phase Transformer.
• Analyzing copper losses, iron losses, and total transformer losses.
• Determining voltage regulation and efficiency without applying actual full load.
• Understanding heat run testing and temperature rise characteristics of transformers.
• Learning the importance of transformer polarity and its effect on parallel operation.
• Interpreting experimental observations and calculating transformer performance parameters.
• Gaining practical experience in conducting Sumpner Test in Transformer laboratories.
• Developing hands-on skills in transformer testing, measurement, and analysis techniques.

Why Choose Nvis 7011 Sumpner’s Test of Two Single Phase Transformer?

Nvis 7011 is an advanced educational trainer designed to help students understand the practical aspects of transformer testing and performance evaluation. The setup provides a comprehensive platform for conducting the Sumpner Test of Transformer, enabling learners to study transformer efficiency, voltage regulation, and losses under controlled laboratory conditions. Its user-friendly design and integrated safety features make it an ideal choice for electrical engineering laboratories, technical institutes, and vocational training centers.

Key Benefits:

• Facilitates practical learning of the Sumpner Test and its significance in transformer testing.
• Supports the study of Sumpner’s Test on Single Phase Transformer using two identical transformers.
• Enables determination of efficiency and voltage regulation without applying actual full-load conditions.
• Helps analyze copper losses, iron losses, and heat run test characteristics.
• Features a microcontroller-based LCD for convenient temperature monitoring.
• Includes an inbuilt Single Phase Variac for easy experiment execution.
• Provides clear diagrammatic connections for hassle-free operation.
• Designed with comprehensive safety measures for reliable laboratory use.
• Compact and durable construction ensures long service life.
• Enhances practical understanding of Sumpner Test in Transformer applications and performance analysis.

FAQs

What is Sumpner’s Test of a Transformer?

Sumpner’s Test, also called the back-to-back test, is used to determine transformer efficiency, voltage regulation, losses, and temperature rise under full-load conditions without connecting an actual load, making testing economical and effective.

Why is Sumpner’s Test performed on Single Phase Transformers?

Sumpner’s Test on Single Phase Transformer helps evaluate performance characteristics such as efficiency, voltage regulation, copper losses, iron losses, and temperature rise while requiring only the power needed to compensate for losses.

What are the advantages of using the Nvis 7011 Sumpner’s Test Trainer?

The Nvis 7011 trainer offers practical learning of Sumpner Test of Transformer concepts, easy experiment setup, built-in safety features, temperature monitoring, and hands-on experience in transformer testing and performance analysis.

What parameters can be measured using Sumpner Test?

Using the Sumpner Test, students can measure transformer efficiency, voltage regulation, iron losses, copper losses, total losses, and temperature rise, helping them understand transformer behavior under simulated full-load conditions.

How does Sumpner Test help in transformer studies?

Sumpner Test in Transformer studies provides practical exposure to transformer testing methods, enabling students to analyze performance, understand heat run testing, calculate efficiency, and develop skills required for electrical engineering applications.
