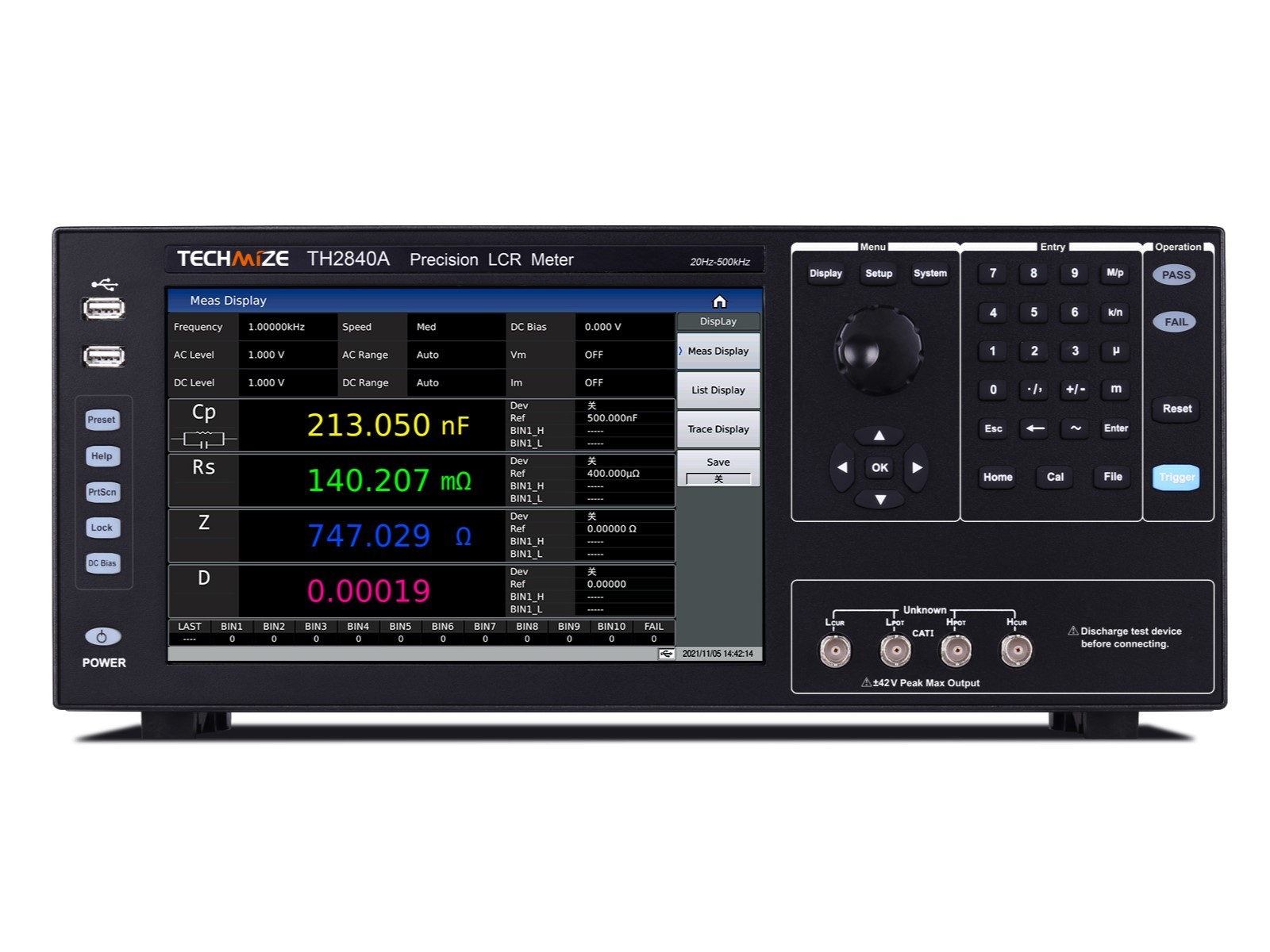

Super Fast LCR Meter
TH2840 Series
Product Description
The TH2840 Series Super Fast LCR Meter is a high-performance precision impedance analyzer designed for fast and accurate measurement of inductance, capacitance, resistance, impedance, ESR, DCR, and related parameters. Featuring a frequency range of 20Hz to 2MHz, 0.05% basic accuracy, and measurement speeds of up to 1000 readings per second, it is ideal for component characterization, quality control, research laboratories, and automated production testing. Its powerful signal output, built-in DC bias source, advanced scanning functions, and large touch-screen display provide a comprehensive solution for demanding electronic testing applications.
Product Features
• Frequency range from 20Hz to 2MHz
• High basic accuracy of 0.05%
• Ultra-fast measurement speed up to 1000 readings/second
• Powerful AC test signal up to 20Vrms / 100mA
• Built-in DC bias source up to ±40V / 100mA
• Built-in AC current source up to ±2A
• 10.1-inch high-resolution capacitive touch screen
• Four-parameter simultaneous measurement display
• Point test, list scan, and graph scan modes
• 201-point multi-parameter list scanning function
• 10-bin comparator sorting and counting function
• High stability with 14 measurement range configurations
• USB, LAN, RS232, HANDLER, and external control interfaces
• SCPI and MODBUS command compatibility for automation
• Ideal for R&D, incoming inspection, quality control, and production environments
