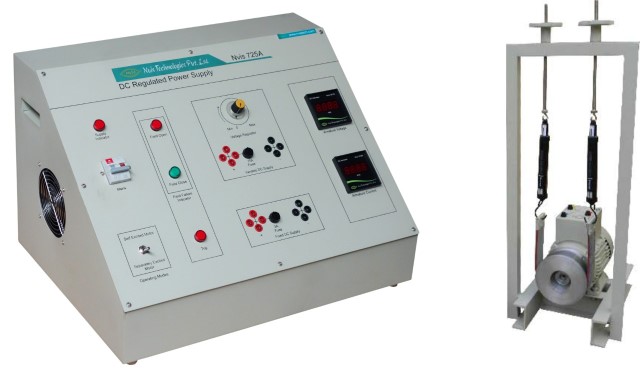

    DC Drive Training System

    Nvis 725AF

    Product Description

    Nvis 725AF DC Drive Training System is used in electrical engineering laboratories for the purpose of conducting experiments in DC machines. This product provides fixed and variable DC output for continuous operation with an over current protection. Output voltage and current can be continuously monitored by front panel meters.

    Nvis 725AF includes DC Shunt Motor of suitable mechanical loading arrangement to conduct various experiments such as running & reversing, no load test, load test, etc. It includes study of various faults simulated using toggle switches for trouble shooting of DC drive and circuit.

    Product Features

    • Suitable to run in series and shunt mode of machine.
    • Low cost thyristor based design.
    • Separate section for fixed and variable supply.
    • Over current and emergency protection.
    • Machine with mechanical loading arrangement.
    • Control board consist of high grade FRP material to provide utmost safety to the users.
    • Machine with class "B" insulation.
    • Brake-Drum/Pulley with heat suppression facility.
    • Designed considering all safety standards.
    • Diagrammatic representation for the ease of connections.
    • Provided with digital tachometer.
