Single Channel Digital Power Meter

Product Description

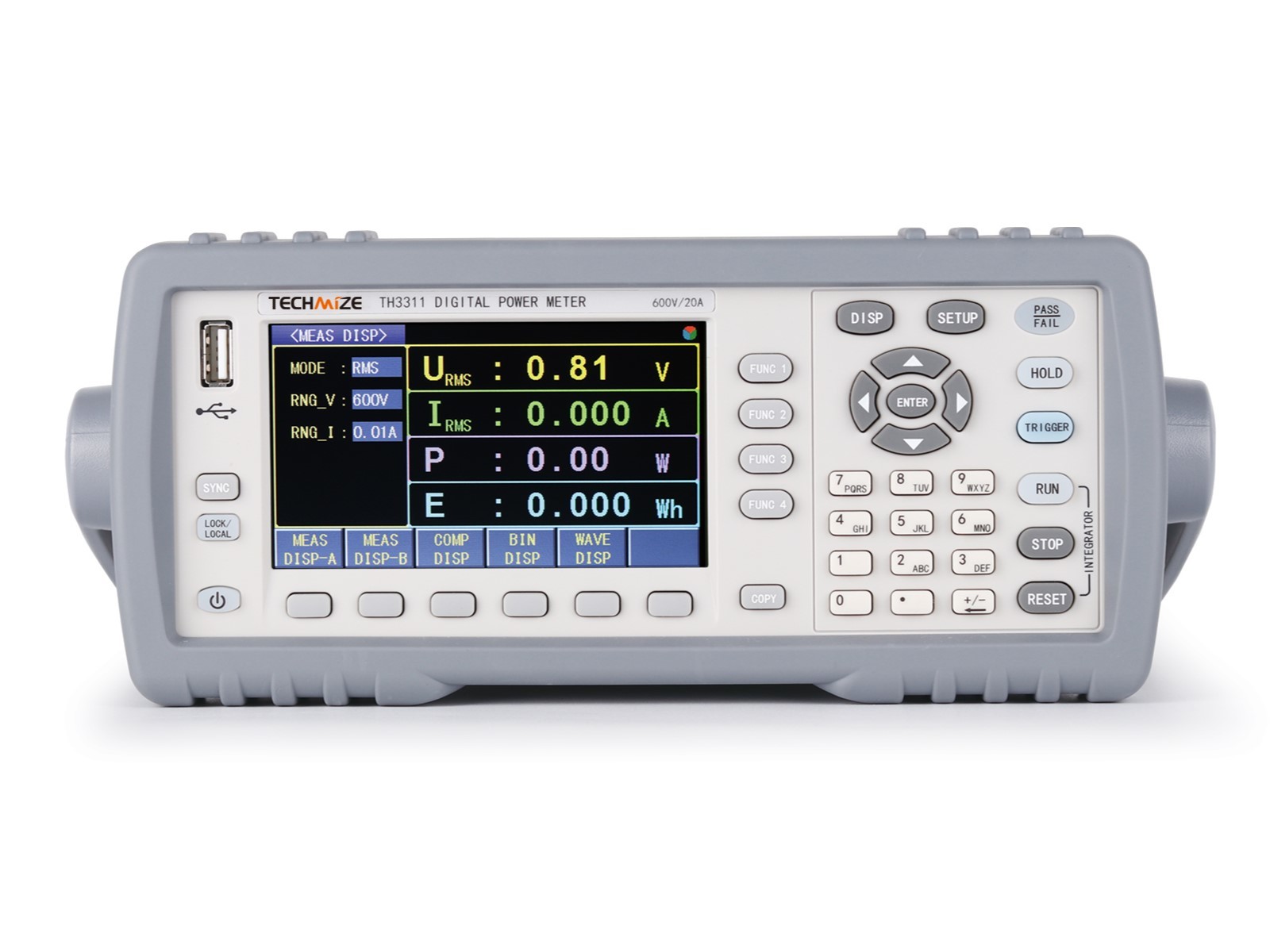

The TH3300 Series Digital Power Meter is a high-precision single-channel power analysis instrument designed for accurate measurement of voltage, current, power, energy, frequency, and power factor in AC and DC systems. Featuring a 4.3-inch color LCD display, harmonic analysis, waveform monitoring, and data recording functions, it provides a reliable solution for power efficiency testing, industrial equipment evaluation, lighting analysis, and new energy applications. Its high accuracy and fast measurement speed make it ideal for laboratories, quality control, and production environments.

Features

• High measurement accuracy up to 0.15%
• Single-channel AC and DC power measurement
• 4.3-inch TFT color LCD display
• Voltage range: 5V to 600V
• Current measurement up to 20A/40A (model dependent)
• Power measurement up to 12kW
• Frequency range: DC, 45Hz–420Hz
• Harmonic analysis and histogram display
• Real-time voltage and current waveform display
• Energy, power factor, and frequency measurement
• Fast data update and recording functions
• USB, RS232, RS485, USB Host, and HANDLER interfaces
• Suitable for appliance, motor, transformer, lighting, and renewable energy testing
