Multi-Channel Digital Power Meter

Product Description

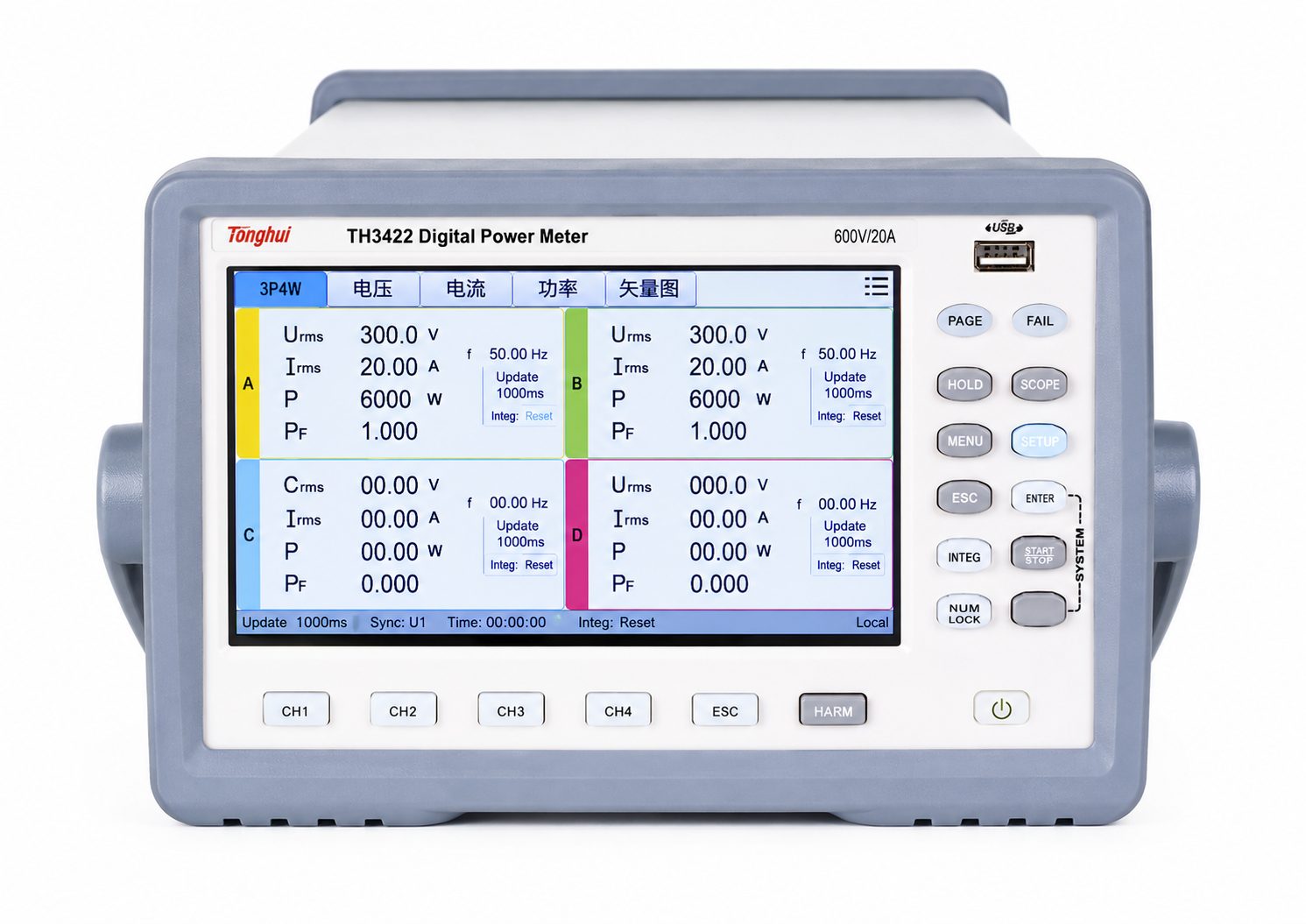

The TH3400 Series Digital Power Meter is a high-precision power analysis instrument designed for accurate measurement of voltage, current, power, energy, frequency, power factor, and harmonic parameters in AC and DC systems. Featuring multi-channel measurement capability, harmonic analysis, waveform and vector display functions, and a 7-inch touch-screen interface, it provides a comprehensive solution for power electronics testing, energy analysis, quality control, research laboratories, and automated production environments. Its high accuracy, flexible communication

Features

• High measurement accuracy up to 0.15%
• Multi-channel power measurement capability
• AC and DC power analysis
• 7-inch color TFT touch screen display
• Harmonic analysis with graphical display
• Real-time waveform and vector analysis
• Energy integration and power factor measurement
• Broadband frequency range from 45Hz to 420Hz
• Programmable comparator and alarm functions
• Screenshot and file storage capability
• USB, LAN, RS232, RS485, HANDLER, and WiFi communication interfaces
• SCPI and MODBUS protocol support
• Suitable for power supplies, inverters, motors, batteries, EV systems, and renewable energy testing
