Radial and Ring Main Distribution System

Product Description

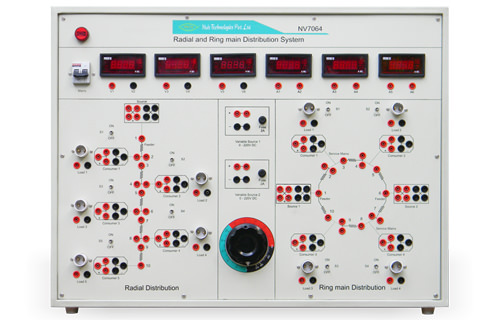

NV7064 Radial and Ring Main Distribution System is specially designed to illustrate the working phenomenon of a Distribution System configured as Radial and Ring Main Distribution System. Distribution System is the part of the electric power system which connects the high voltage transmission networks to the low voltage consumer service points. Distribution Systems should be designed in a way that Voltage variation at consumer terminals must be maintained within ±5%.

NV7064 provides complete learning content to develop Ring and Radial Distribution System manually. Voltage regulation is studied by performing experiments & comparison. It includes inbuilt DC Variable Supply with adequate protections, precise digital meters are used along with separate sections for Radial and Ring Main Distribution System so that students can understand the significance of both Radial and Ring Main Distribution Systems in a proper sequence.

The setup enables learners to study the operation of a Ring Main System and analyze the performance of a Ring Distribution System under different loading conditions. It also helps in understanding the practical implementation of Ring and Radial Distribution System configurations used in modern power distribution networks.

NV7064, Radial and Ring Main Distribution System is an ideal platform to enhance education, training, skills & development amongst our young minds.

Product Features

• Digital 3 nos. DC Voltmeter & 3 nos. DC Ammeter for accurate measurement
• Separate connection for Radial & Ring Main System
• Inbuilt DC Variable Supply
• Isolation Transformer is provided for safe operation
• Exclusive and attractive designed panel
• Provided with inbuilt lamp load holders
• Diagrammatic representation for the ease of connections
• Learning material CD

Why Choose Nvis 7064 Radial and Ring Main Distribution System?

Nvis 7064 Radial and Ring Main Distribution System is an advanced educational trainer designed to provide a comprehensive understanding of modern power distribution networks. The system enables students to study and compare the operation of both the Radial Distribution System and Ring Main Distribution System, helping them understand their working principles, voltage regulation characteristics, and practical applications.

Equipped with precise digital measuring instruments, an inbuilt DC variable power supply, and dedicated sections for each configuration, the trainer offers a safe and effective hands-on learning experience. The setup allows learners to analyze the performance of a Ring Main System and a Ring Distribution System through practical experiments, making complex distribution concepts easier to understand.

Its user-friendly design, diagrammatic circuit representation, and comprehensive learning material make it an ideal choice for engineering colleges, technical institutes, and electrical laboratories. By combining theoretical concepts with practical experimentation, Nvis 7064 helps students develop a strong foundation in Ring and Radial Distribution System studies while enhancing their analytical and technical skills.

FAQs

What is a Radial Distribution System?

A radial distribution system is a power distribution network in which electricity flows from a single source to consumers through one path. It is simple, economical, and widely used in electrical distribution systems.

What is a Ring Main Distribution System?

A ring main distribution system is a network configuration where the distribution feeders form a closed loop. This arrangement improves reliability and ensures continuous power supply even if one section of the network fails.

What is the difference between a Radial Distribution System and a Ring Main Distribution System?

A radial distribution system has a single power flow path, while a ring main distribution system provides multiple paths for power flow. Ring systems offer better reliability and voltage regulation compared to radial systems.

What experiments can be performed using the Nvis 7064 trainer?

The Nvis 7064 trainer allows students to study voltage regulation, current distribution, load behavior, and performance comparison of radial and ring main distribution system configurations through practical experiments.

Who can use the Radial and Ring Main Distribution System trainer?

This trainer is ideal for electrical engineering students, technical institutes, polytechnic colleges, vocational training centers, and laboratories seeking hands-on experience with power distribution system concepts.
