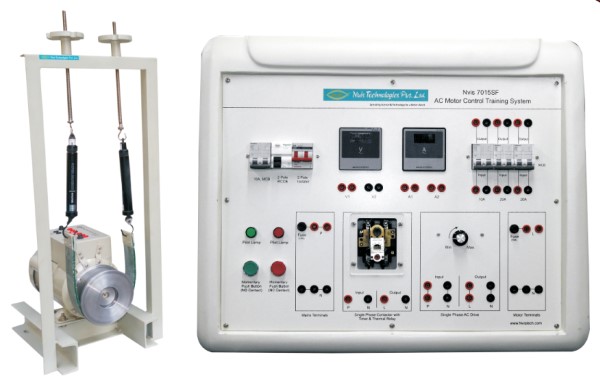

Nvis 7015SF Single Phase AC Motor Control Training System is an exclusive and attractive training system for electrical laboratories. It provides complete learning on working of single phase capacitor start induction motor. Separate terminals have been provided for main winding, starting winding and capacitor so that students can understand the significance of individual windings along with the role of capacitor in the motor in a simple manner.

It includes phenomenon of excitation, running and reversing of the motor. All connections and appearance of panel are designed in a simple manner. Students can make connections by themselves.

Features

• Digital microcontroller based.
• Equipped with supply indication lamps.
• Control board consist of high grade FRP material to provide utmost safety to the users.
• Machine with class “F” insulation.
• Equipped with single phase DOL starter and AC drive.
• Machine with standard mechanical loading structure with rotor locking facility.
• High standard BS-10 terminal to avoid electrical shock.
• Brake-drum/pulley with heat suppression facility.
• Rust free power coated mechanical structure.
• Digital tachometer for speed measurement.
